• Silicon Carbide Mechanical Seal (SiC).
4 to 5 times more durable than standard Carbon Ceramic Mechanical Seal.
• Spheroidal graphite iron casting (FCD 450) for Impeller and Casing.
6.5 times more corrosion resistant than standard FC or Cast Iron .
• Impeller can be removed easily without special tool.
• Long bolt assembly for easy maintenance.

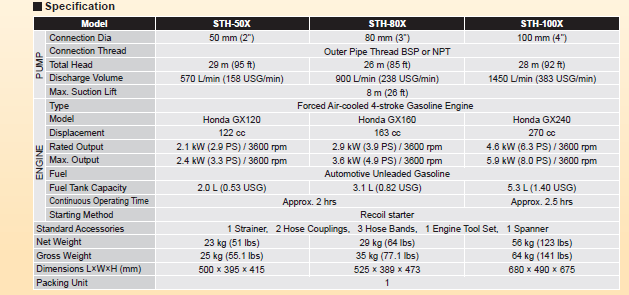

| Product category | |
|---|---|
| Product name | STH-80X |
| Model name | STH-80X-BAA-0 |
| Pump_Connectiondia_Suction | 80 mm (3'') |
| Pump_Connectiondia_Discharge | 80 mm (3'') |
| Pump_Connection thread | BSP or NPT |

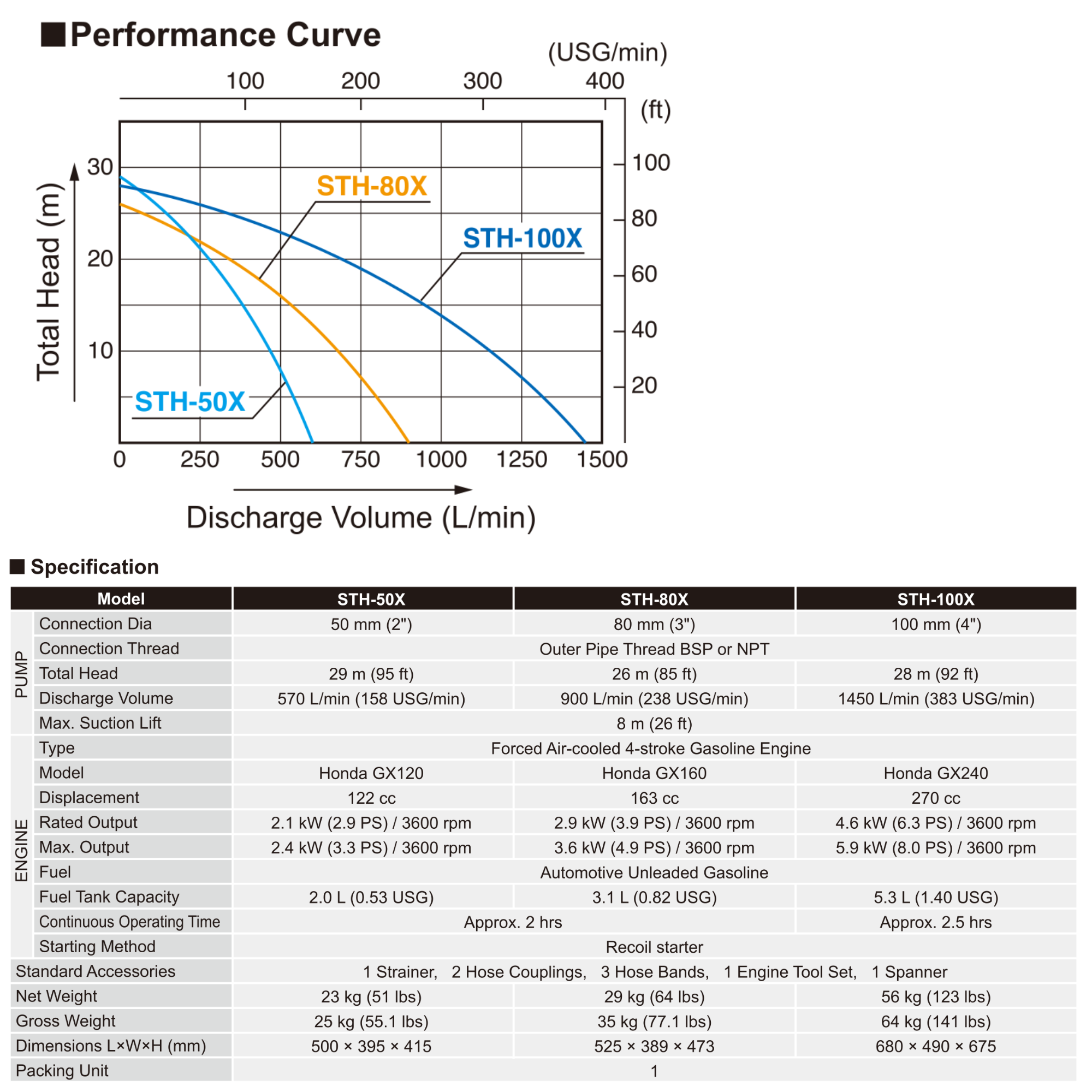

| Pump_Total head | 26 m (85ft) |
| Pump_Discharge volume | 900 L/min (238 USG/min) |
| Pump_Max. suction head | 8 m (26ft) |
| Engine_Type | Forced Air-cooled 4-stroke Gasoline Engine |
| Engine_Model | HONDA GX160 |
| Engine_Displacement | 163 cm3 |
| Engine_Rated output | 2.9 kW (3.9 PS)/ 3600 min-1 |
| Engine_Max. output | 3.6 kW (4.9 PS)/ 3600 min-1 |
| Engine_Fuel | Automotive Unleaded Gasoline |
| Engine_Fuel tank capacity | 3.1 L (0.82 USG) |
| Engine_Engine oil | - |
| Engine_Engine oil capacity | 0.58 L |
| Engine_Continuous operating time | 2 hrs |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | Sandy and muddy water |
| Applicable liquids_Suspended solid percentage | 10% |
| Applicable liquids_Max. solids size | 9 mm |
| Applicable liquids_Temperature | 5-45 ℃ |
| Accessories | 1 Strainer, 1 Spanner, 1 Engine tool sets |
| Net weight | 29 kg (63.9 lb) |
| Gross weight | |
| Product dimensions L x W x H | |
| Packing dimensions L x W x H |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
