Marine & Fishery Marine Rubber Impeller Pump MF-S/MFC-S Series

Marine Rubber Impeller Pump MF Series MFLC-65K* MFLC-65K*

"REVOLVEX PUMPS" Flexible Rubber Impeller for Seawater

Application


• Complete structure is manufactured from gunmetal, no rusting.

• START/STOP is easily controlled by pressing one switch. (MFC type )

• MFC type is fitted with electromagnetic clutch.

• Easy to replace rubber impeller.

• Self-priming.

Product category -
Product name MFLC-65K*
Connection Dia 65 mm (2 1/2'')
Connection Thread Inner Pipe Thread
Material Bronze Castings (Gunmetal)
Total Head 24 m (78 ft)
Delivery Volume 650 L/min (171 USG/min)
Output 5.5 kW (7.5 PS) / 1750 min-1
Number of Blades 6
Driving Method Belt Drive
Revolution Direction Anti-clockwise (Watching from Driving Shaft)
Revolution 500 - 2300 min-1
Shaft Dia Electromagnetic Clutch
Accessories -
Net weight 23.5 kg (51.8 lbs)
Gross weight 25 kg (55 lbs)
Product dimensions L x W x H 450 x 224 x 270 mm
Packing dimensions L x W x H -
Packing Unit 1

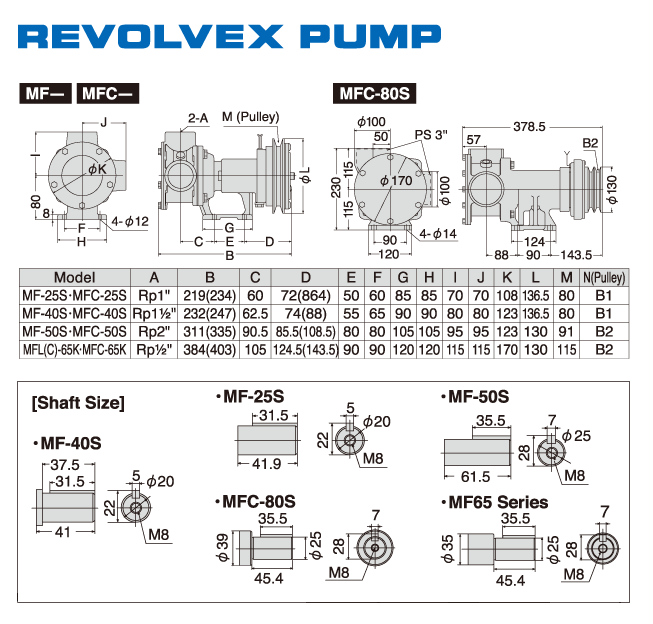

Performance curve and outline drawing
