・Powerful Engine
・8m Suction Lift
・Easy to Carry with Compact and Light-weight Body

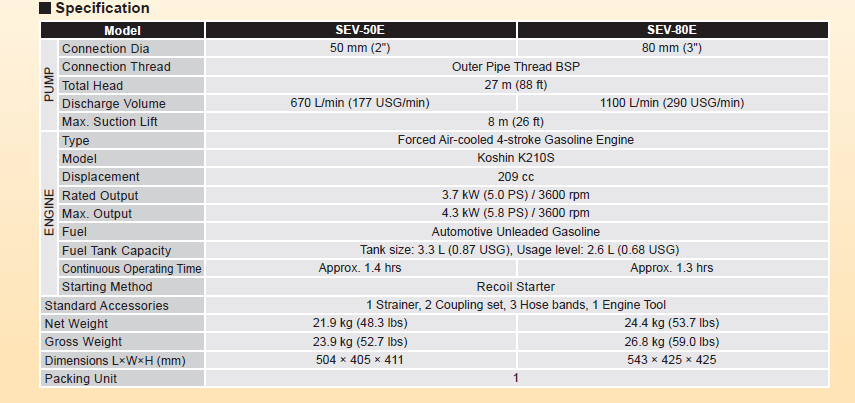

| Product category | |
|---|---|
| Product name | SEV-50E |
| Model name | SEV-50E-BAA-2 |
| Pump_Connectiondia_Suction | 50 mm(2'''''''''''''''') |
| Pump_Connectiondia_Discharge | |
| Pump_Connection thread | Outer Pipe Thread BSP |
| Pump_Total head | 27 m (88 ft) |
| Pump_Discharge volume | 670 L/min (177 USG/min) |
| Pump_Max. suction head | 8 m (26 ft) |
| Engine_Type | Forced Air-cooled 4-stroke Gasoline Engine |
| Engine_Model | Koshin K210S |
| Engine_Displacement | 209cc |
| Engine_Rated output | 3.7 kw (5.0 PS) / 3600rpm |
| Engine_Max. output | 4.3 kw (5.8 PS) / 3600rpm |
| Engine_Fuel | Automotive Unleaded Gasoline |
| Engine_Fuel tank capacity | Tank size:3.3 L (0.87 USG), Usage level:2.6 L (0.68 USG) |
| Engine_Engine oil | |
| Engine_Engine oil capacity | |
| Engine_Continuous operating time | Approx. 1.4 hrs |
| Engine_Starting method | Recoil Starter |
| Applicable liquids_Consistency | |
| Applicable liquids_Suspended solid percentage | |
| Applicable liquids_Max. solids size | |
| Applicable liquids_Temperature | |
| Accessories | 1 Strainer, 2 Couplings set , 3 Hose bands, 1 Engine Tool |
| Net weight | 21.9 kg (48.3 lbs) |
| Gross weight | 23.9 kg (52.7 lbs) |
| Product dimensions L x W x H | 504 × 405 × 411 |
| Packing dimensions L x W x H |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
