Engine Pump Trash Pump Yanmar KTY-80D KTY-80D

Heavy Duty Trash Pumps

Application



Introduction examples


• Long operation time with large fuel tank.

• Suitable for mining and construction site.

■Outstanding Features

• Excellent Seal Durability

• Thoughtful Design

• Light Weight & Compact Design

• High Self-priming Performance

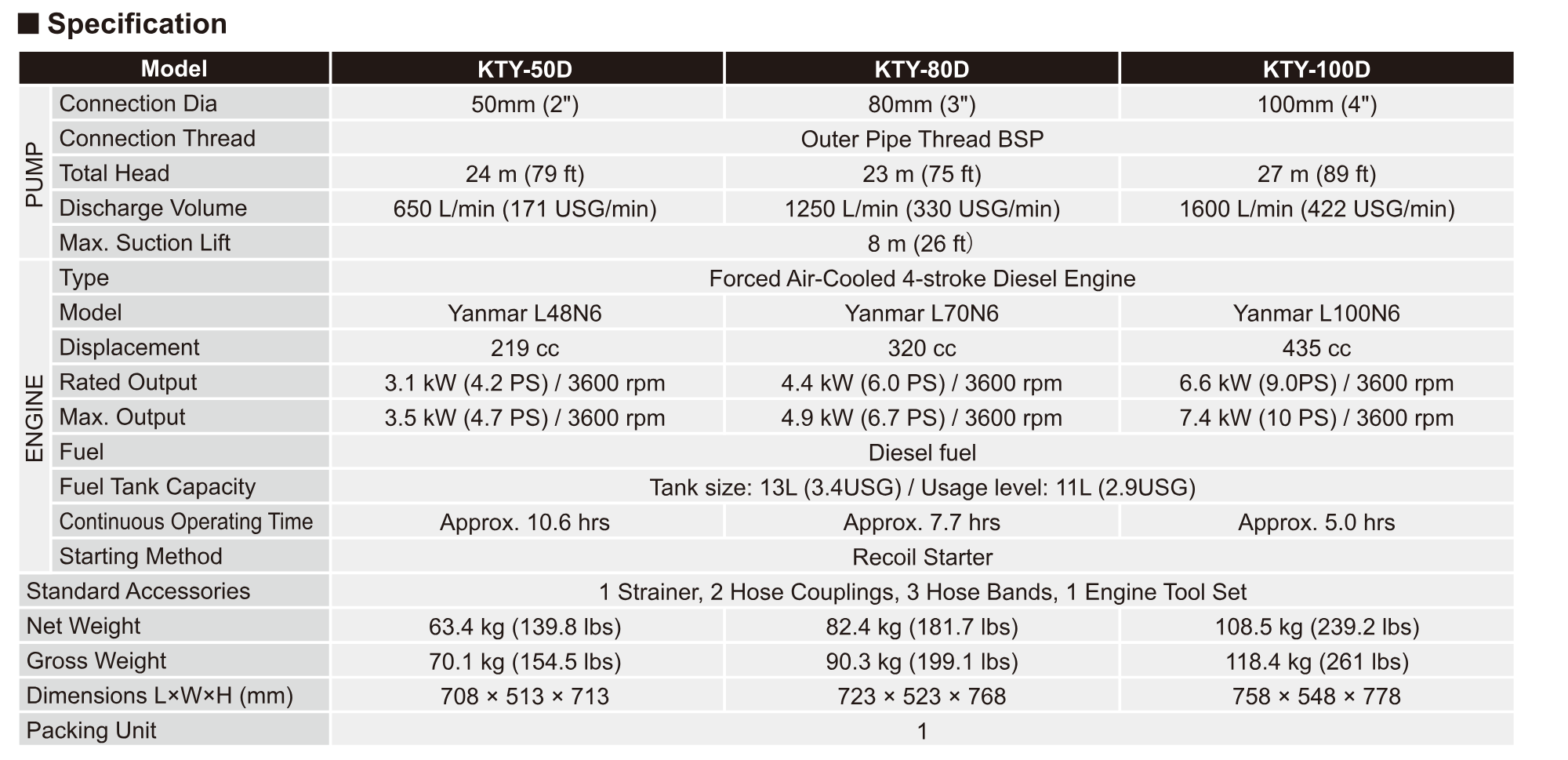

Product category Self-priming, Trash pump
Product name KTY-80D
Model name KTY-80D-BAA-0
Pump_Connectiondia_Suction 80 mm (3 '''')
Pump_Connectiondia_Discharge 80 mm (3 '''')
Pump_Connection thread BSP
Pump_Total head 23 m (75 ft)
Pump_Discharge volume 1250 L/min (330 USG/min)
Pump_Max. suction head 8 m
Engine_Type Forced air-cooled 4-stroke diesel engine
Engine_Model YANMAR L70N6
Engine_Displacement 320 cc
Engine_Rated output 4.4 kW (6.0 PS) /3600 min-1
Engine_Max. output 4.9 kW (6.7 PS) /3600 min-1
Engine_Fuel Diesel fuel
Engine_Fuel tank capacity 11 L (2.90 USG) /13 L (3.43 USG)
Engine_Engine oil API grade CD or above
Engine_Engine oil capacity 1.1 L
Engine_Continuous operating time Approx. 7.7 hrs
Engine_Starting method Recoil starter
Applicable liquids_Consistency Sandy and muddy water (suspended solids)
Applicable liquids_Suspended solid percentage 25%
Applicable liquids_Max. solids size 27 mm (1.06 '''')
Applicable liquids_Temperature 5-45 °C (41-113°F)
Accessories 1 Strainer, 2 Hose coupling sets, 3 Hose bands, 1 Engine tool set
Net weight 82.4 kg (187.4 lbs)
Gross weight 90.3 kg (199.0 lbs)
Product dimensions L x W x H 690 x 490 x 735 mm
Packing dimensions L x W x H 723 × 523 × 768 mm


Performance curve and outline drawing
Document download

Optional parts


Support for this product


FAQ about Yanmar KTY Series

FAQ aboutTrash Pump

FAQ about Engine Pump

Pump does not work.

1. Engine start failure.Refer to instruction of engine

2. Blocked impeller.Disassemble & clean
