Koshin Trash Pumps
•Reasonable price
About 30% less price compared to same quality trash pumps. The most affordable price ever.
•Excellent Quality
Provides powerful performance and long durability with New KOSHIN engine and enhanced pump.
•Easy maintenance
Thoughtful flame for easy replacement of
carburetor.
You can clear inside of pump by simply removing
pump casing with only one tool.

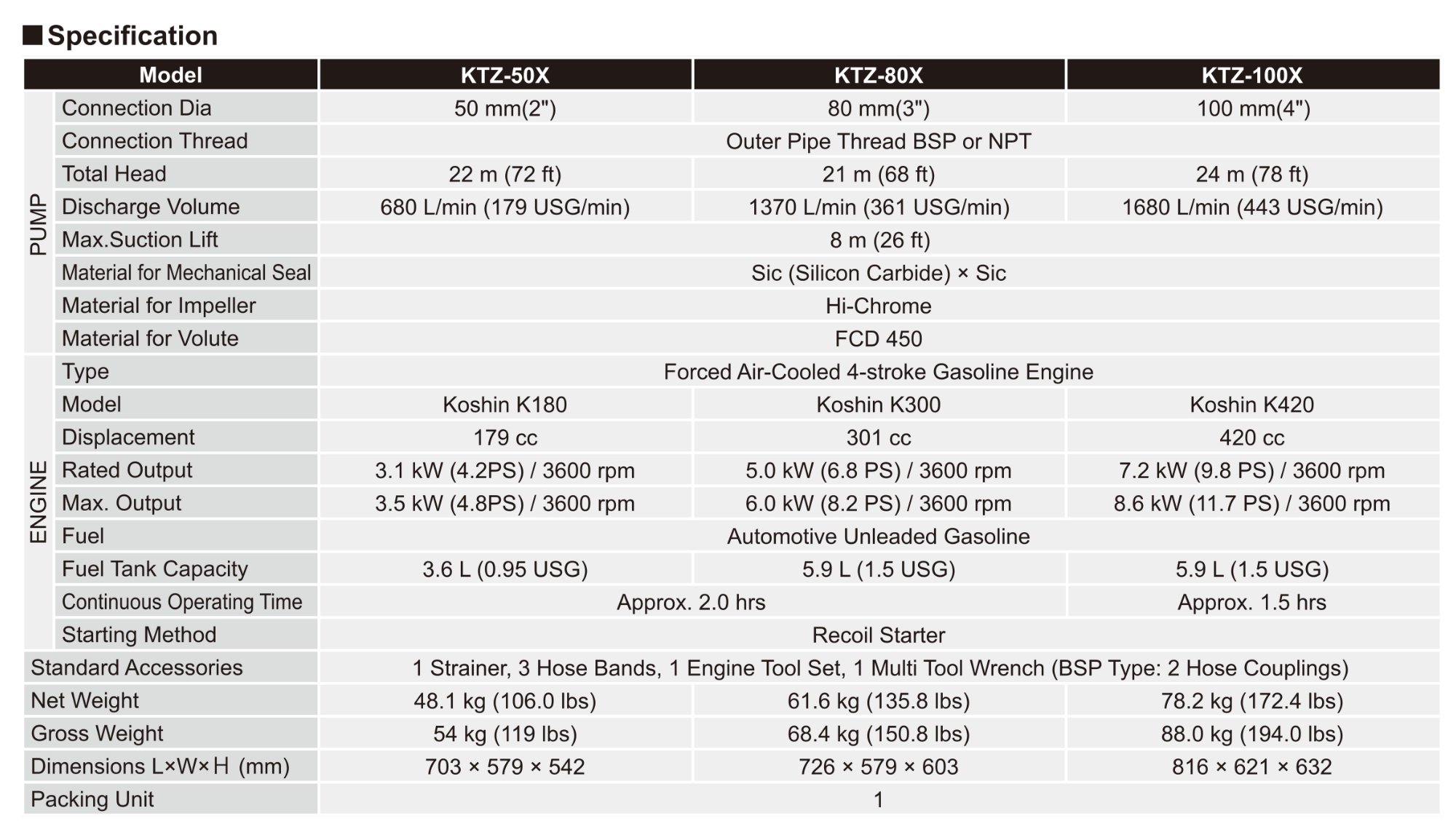

| Product category | |
|---|---|
| Product name | KTZ-80X |
| Model name | KTZ-80X-BAA-0 |
| Pump_Connectiondia_Suction | 80 mm(3'''') |
| Pump_Connectiondia_Discharge | |
| Pump_Connection thread | Outer Pipe Thread BSP or NPT |
| Pump_Total head | 21 m(68 ft) |
| Pump_Discharge volume | 1370 L/min (361 USG/min) |
| Pump_Max. suction head | 8 m (26 ft) |
| Engine_Type | Forced Air-cooled 4-stroke Gasoline Engine |
| Engine_Model | Koshin K300 |
| Engine_Displacement | 301 cc |
| Engine_Rated output | 5.0 kw (6.8 PS) / 3600 rpm |
| Engine_Max. output | 6.0 kw (8.2 PS) / 3600 rpm |
| Engine_Fuel | Automotive Unleaded Gasoline |
| Engine_Fuel tank capacity | 5.9 L (1.5 USG) |
| Engine_Engine oil | |
| Engine_Engine oil capacity | |
| Engine_Continuous operating time | Approx. 2.0 hrs |
| Engine_Starting method | Recoil Starter |
| Applicable liquids_Consistency | |
| Applicable liquids_Suspended solid percentage | |
| Applicable liquids_Max. solids size | |
| Applicable liquids_Temperature | |
| Accessories | 1 Strainer, 2 Hose Couplings, 3 Hose bands, 1 Engine Tool set, 1 Multi Tool Wrench (BSP Type:2 Hose Couplings) |
| Net weight | 61.6 kg (135.8 lbs) |
| Gross weight | 68.4 kg (150.8 lbs) |
| Product dimensions L x W x H | 726 × 579 × 603 |
| Packing dimensions L x W x H |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
