Construction & Civil Engineering Engine Pump Trash Pump KOSHIN KTZ Series

Engine Pump Trash Pump KOSHIN KTZ Series KTZ-50X KTZ-50X

Heavy Duty Trash Pumps

Application



Introduction examples


Koshin Trash Pumps

Reasonable price

About 30% less price compared to same quality trash pumps. The most affordable price ever.

•Excellent Quality

Provides powerful performance and long durability with New KOSHIN engine and enhanced pump.

•Easy maintenance

Thoughtful flame for easy replacement of carburetor.
You can clear inside of pump by simply removing pump casing with only one tool.

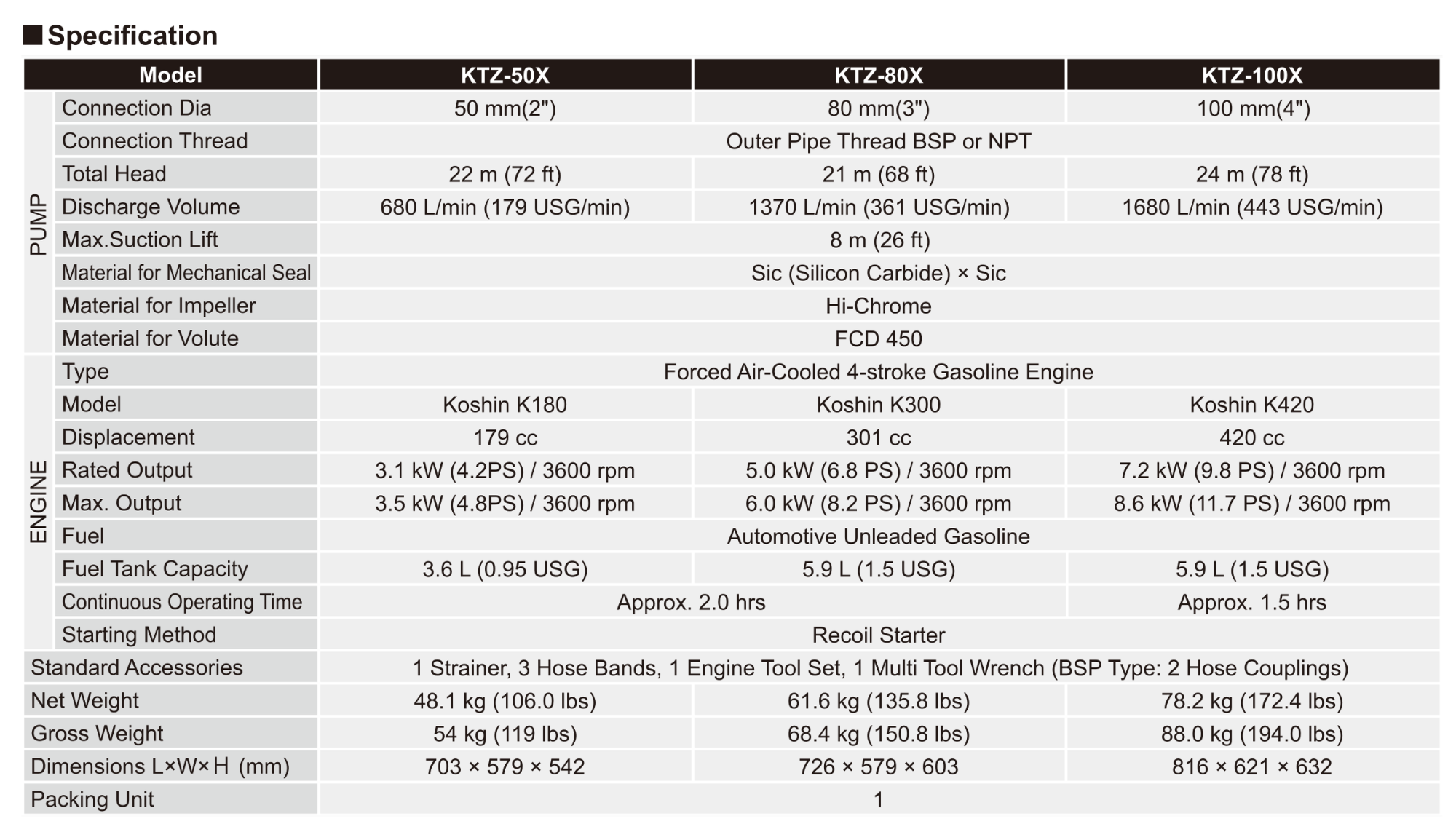

Product category Sell-priming, Trash pump
Product name KTZ-50X
Model name KTZ-50X-BAA-0
Pump_Connectiondia_Suction 50 mm (2'''')
Pump_Connectiondia_Discharge 50 mm (2'''')
Pump_Connection thread BSP(North America:NPT)
Pump_Total head 22 m (72 ft)
Pump_Discharge volume 680 L/min (179 USG/min)
Pump_Max. suction head 8 m (26ft)
Engine_Type Forced air-cooled 4-stroke gasoline engine
Engine_Model K180
Engine_Displacement 179 cm3
Engine_Rated output 3.1 kW (4.2 PS)(4.1 HP)/ 3600 min-1
Engine_Max. output 3.5 kW (4.8 PS)(4.7 HP)/ 3600 min-1
Engine_Fuel Automobile unleaded gasoline
Engine_Fuel tank capacity 3.6L (0.95 USG)
Engine_Engine oil Engine oil for 4-stroke gasoline engine: API grade SE or above, SAE 10W-30
Engine_Engine oil capacity 0.55 L
Engine_Continuous operating time Approx. 2.0 hrs
Engine_Starting method Recoil starter
Applicable liquids_Consistency Sandy and muddy water (suspended solids)
Applicable liquids_Suspended solid percentage 25%
Applicable liquids_Max. solids size 20 mm (0.78 '''')
Applicable liquids_Temperature 5-45 °C (41-113°F)
Accessories 3 Hose bands, 1 Strainer, 1 Multi tool wrench, 1 Engine tool sets, 2 Coupling sets
Net weight 48.1 kg (106.0 lbs)
Gross weight 54.0 kg (119.0 lbs)
Product dimensions L x W x H
Packing dimensions L x W x H 703 × 579 × 542 mm


Performance curve and outline drawing
Document download

Optional parts


Support for this product


FAQ about KOSHIN KTZ Series

FAQ aboutTrash Pump

FAQ about Engine Pump

Pump does not work.

1. Engine start failure.Refer to instruction of engine

2. Blocked impeller.Disassemble & clean
