• Long operation time with large fuel tank.
• Suitable for mining construction site.
• SIC
Silicon Carbide Mechanical Seal 4-5 times more durable than Standard Carbon Ceramic mechanical seal.
• FCD
Spheroidal Graphite Iron Casting for Impeller & Volute Casing 6.5 times more erosion resistance than Standard FC or Cast Iron.
■Outstanding Features
• Suitable for Sandy and Muddy Water usage
• Particles up to 9 mm can be pumped through
• Guaranteed suction lift of 8 meters
• Long bolt assembly for easy maintenance

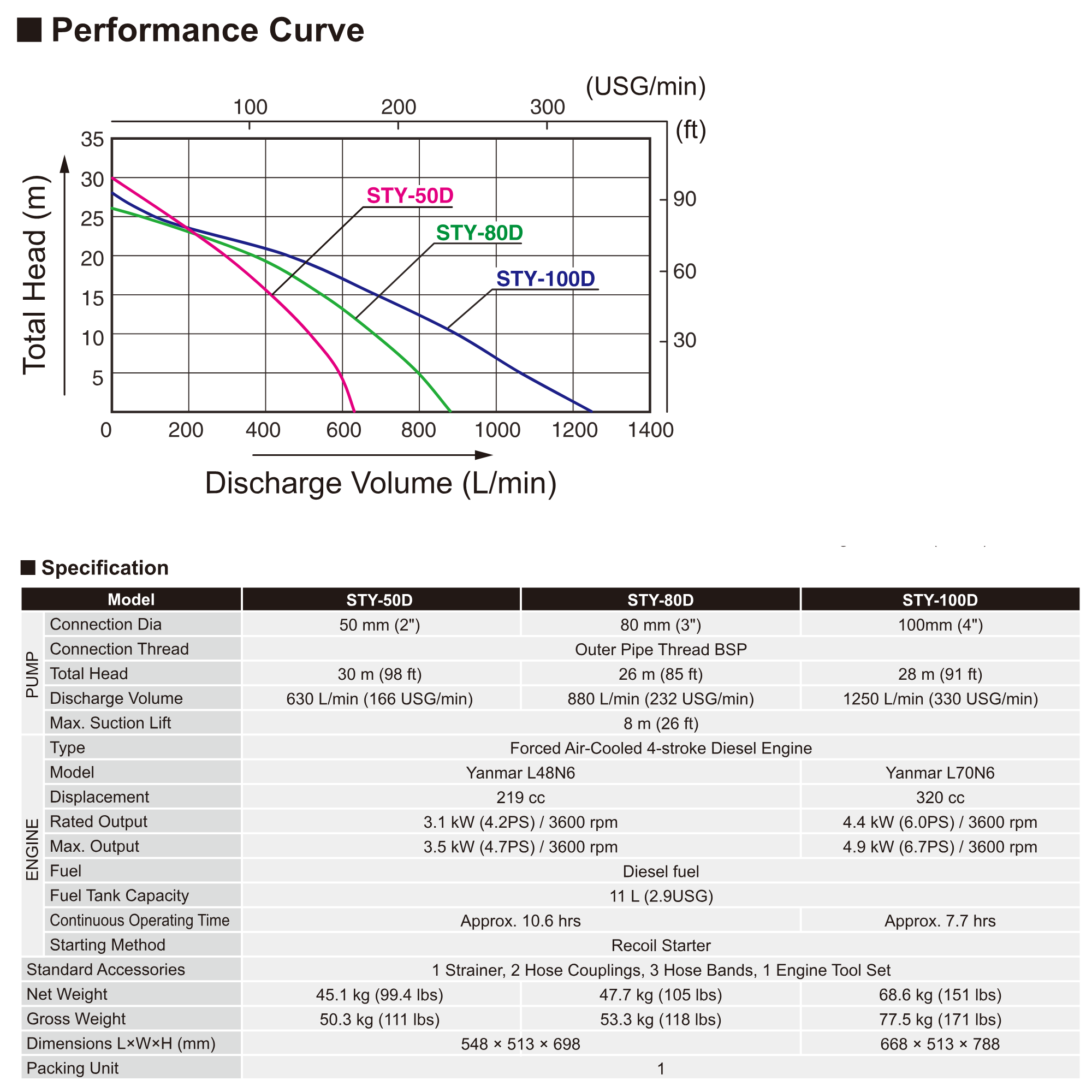

| Product category | Self-priming, Semi-trash pump |
|---|---|
| Product name | STY-100D |
| Model name | STY-100D-BAA-0 |
| Pump_Connectiondia_Suction | 100 mm (4 '''') |
| Pump_Connectiondia_Discharge | 100 mm (4 '''') |
| Pump_Connection thread | BSP |
| Pump_Total head | 28 m (91 ft) |
| Pump_Discharge volume | |
| Pump_Max. suction head | 8 m |
| Engine_Type | Forced air-cooled 4-stroke diesel engine |
| Engine_Model | YANMAR L70N6 |
| Engine_Displacement | 320 cm3 |
| Engine_Rated output | 4.4 kW (6.0 PS) / 3600 min-1 |
| Engine_Max. output | 4.9 kW (6.7 PS) / 600 min-1 |
| Engine_Fuel | Diesel fuel |
| Engine_Fuel tank capacity | 13 L (3.43 USG)/11 L (2.90 USG) |
| Engine_Engine oil | API grade CD or above |
| Engine_Engine oil capacity | 1.1 L |
| Engine_Continuous operating time | Approx. 7.7 hrs |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | Sandy and muddy water (suspended solids) |
| Applicable liquids_Suspended solid percentage | 10% |
| Applicable liquids_Max. solids size | 9 mm (0.35 '''') |
| Applicable liquids_Temperature | 5-45 °C (41-113°F) |
| Accessories | 1 Strainer, 2 Hose coupling sets, 3 Hose bands, 1 Engine tool set, 1 Wrench |
| Net weight | 68.6 kg (151.2 lbs) |
| Gross weight | 77.5 kg (170.9 lbs) |
| Product dimensions L x W x H | 635 x 480 x 755 mm |
| Packing dimensions L x W x H | 668 x 513 x 788 mm |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
