Construction & Civil Engineering Engine Pump Semi Trash Pump Yanmar STY Seried

Engine Pump Semi Trash Pump Yanmar STY-50D STY-50D

For Sandy and Muddy Water

Application


Introduction examples


• Long operation time with large fuel tank.

• Suitable for mining construction site.

• SIC

Silicon Carbide Mechanical Seal 4-5 times more durable than Standard Carbon Ceramic mechanical seal.

• FCD

Spheroidal Graphite Iron Casting for Impeller & Volute Casing 6.5 times more erosion resistance than Standard FC or Cast Iron.

■Outstanding Features

• Suitable for Sandy and Muddy Water usage

• Particles up to 9 mm can be pumped through

• Guaranteed suction lift of 8 meters

• Long bolt assembly for easy maintenance

Product category Self-priming, Semi-trash pump
Product name STY-50D
Model name STY-50D-BAA-0
Pump_Connectiondia_Suction 50 mm (2 '')
Pump_Connectiondia_Discharge 50 mm (2 '')
Pump_Connection thread BSP
Pump_Total head 30 m (98 ft)
Pump_Discharge volume
Pump_Max. suction head 8 m
Engine_Type Forced air-cooled 4-stroke diesel engine
Engine_Model YANMAR L48N6
Engine_Displacement 219 cm3
Engine_Rated output 3.1 kW (4.2 PS) / 3600 min-1
Engine_Max. output 3.5 kW (4.7 PS) / 3600 min-1
Engine_Fuel Diesel fuel
Engine_Fuel tank capacity 13 L (3.43 USG)/11 L (2.90 USG)
Engine_Engine oil API grade CD or above
Engine_Engine oil capacity 0.8 L
Engine_Continuous operating time Approx. 10.6 hrs
Engine_Starting method Recoil starter
Applicable liquids_Consistency Sandy and muddy water (suspended solids)
Applicable liquids_Suspended solid percentage 10%
Applicable liquids_Max. solids size 8 mm (0.31 '')
Applicable liquids_Temperature 5-45 °C (41-113°F)
Accessories 1 Strainer, 2 Hose coupling sets, 3 Hose bands, 1 Engine tool set, 1 Wrench
Net weight 45.1 kg (99.4 lbs)
Gross weight 50.3 kg (110.9 lbs)
Product dimensions L x W x H 515 x 480 x 665 mm
Packing dimensions L x W x H

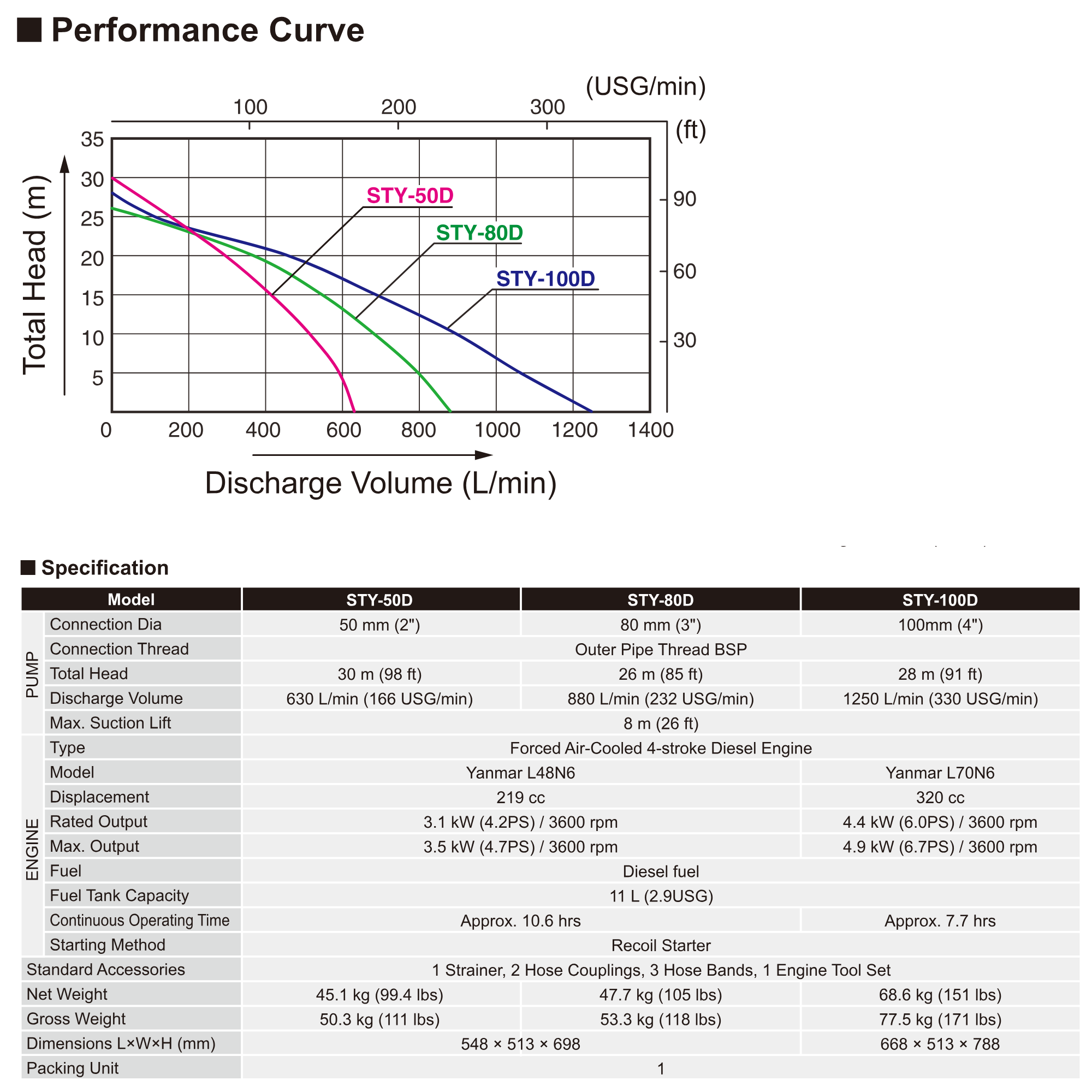

Performance curve and outline drawing
Document download

Optional parts


Support for this product


FAQ about Yanmar STY Seried

FAQ aboutSemi Trash Pump

FAQ about Engine Pump

Pump does not work.

1. Engine start failure.Refer to instruction of engine

2. Blocked impeller.Disassemble & clean
