Engine noise are half of 2-stroke engine.

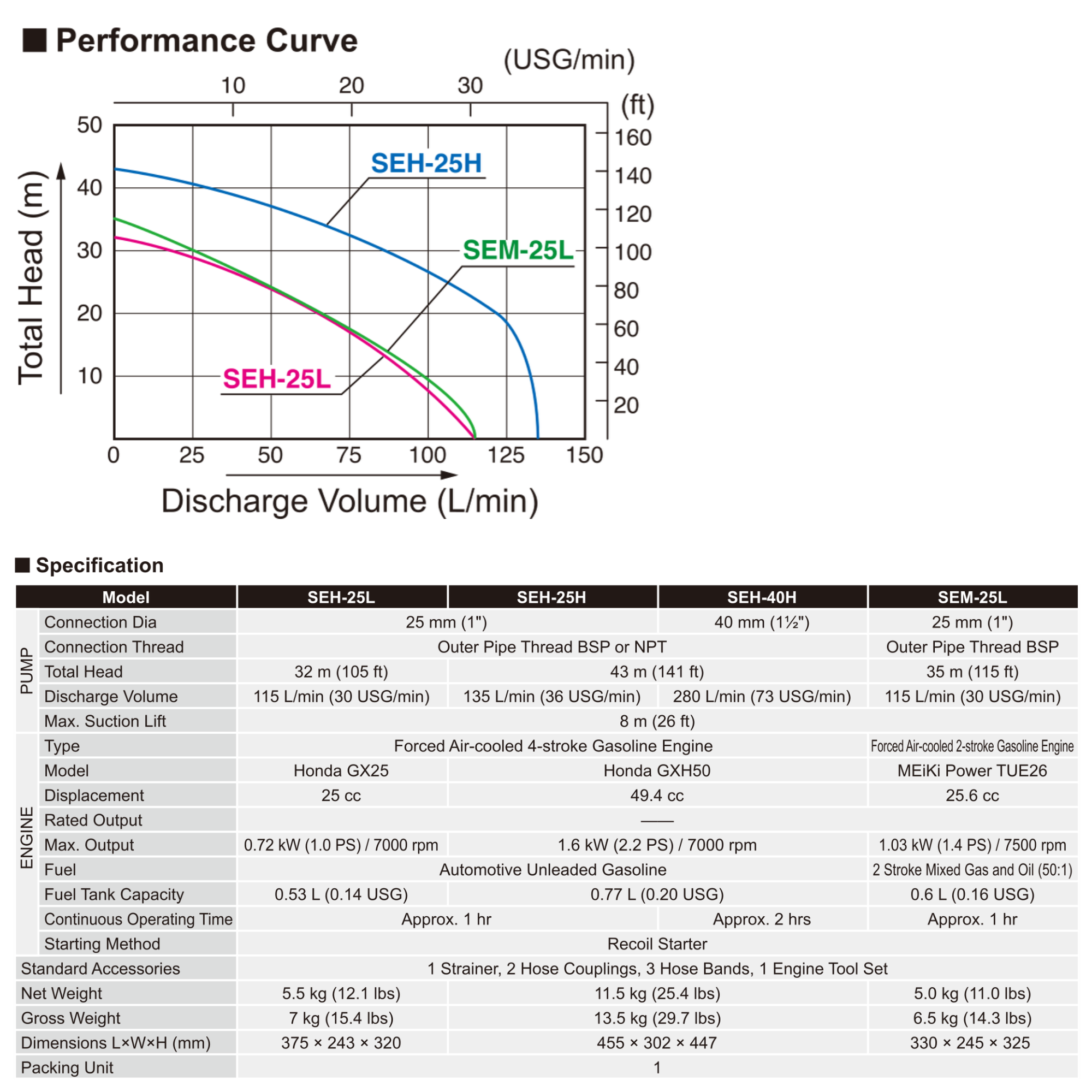

| Product category | Self-priming Engine driven pump |
|---|---|
| Product name | SEH-25L |
| Model name | SEH-25L-BAA-0 |
| Pump_Connection dia_Suction | 25 mm (1 '') |
| Pump_Connection dia_Discharge | 25 mm (1 '') |
| Pump_Connection thread | Outer Pipe Thread |
| Pump_Total head | 32 m (105 ft) |
| Pump_Discharge volume | 115 L/min (30 USG/min) |
| Pump_Max. suction head | 8 m (26 ft) |
| Engine_Type | Forced Aircooled 4-stroke Gasoline Engine |
| Engine_Model | Honda GX25 |
| Engine_Displacement | 25 cm3 |
| Engine_Rated output | - |
| Engine_Max. output | 0.72 kW (1.0 PS)/ 7000 min-1 |
| Engine_Fuel | Automotive Unleaded Gasoline |
| Engine_Fuel tank capacity | 0.53 L |
| Engine_Engine oil | - |
| Engine_Engine oil capacity | 0.08L |
| Engine_Continuous operating time | Approx. 1 hrs |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | Clear water |
| Applicable liquids_Suspended solid percentage | - |
| Applicable liquids_Max. solids size | - |
| Applicable liquids_Temperature | |
| Accessories | 3 Hose bands, 2 Hose couplings, 1 Strainer, 1 Engine tool sets |
| Net weight | 5.5 kg (12.1 lbs) |
| Gross weight | 7.0 kg (15.4 lbs) |
| Product dimensions L x W x H | |
| Packing dimensions L x W x H | 375 × 243 × 320 |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
