Industrial Application
Oil Pump
Gear Pump
GL Series
Oil Pump Gear Pump GL Series GL-20-5 GL-20-5
"GEAR PUMP" GL Series for Low Viscosity Oil
Application
| Product category |
- |
| Product name |
GL-20-5 |
| Pump_Connection Dia |
20 mm (3/4 '''') |
| Pump_Power |
0.75 kW |
| Pump_Poles |
4:00 PM |
| Pump_Pressure_Mpa |
0.5 |
| Pump_Pressure_kgf/cm2 |
5 |
| Pump_Delivery Volume_60 Hz (1200 rpm) |
35 L/min (9 USG/min) |
| Pump_Delivery Volume_50 Hz (1000 rpm) |
29 L/min (7 USG/min) |
| Pump_Material of Housing |
ADC |
| Pump_Coupling |
ZDC |
| Pump_Pump Shaft Dia |
φ 18mm |
| Accessories |
- |
| Net weight |
4.6 kg(10.1 lbs) |
| Gross weight |
5.0 kg(11.0 lbs) |
| Product dimensions L x W x H |
224 x 150 x 155 mm |
| Packing dimensions L x W x H |
- |
| Packing Unit |
1 |

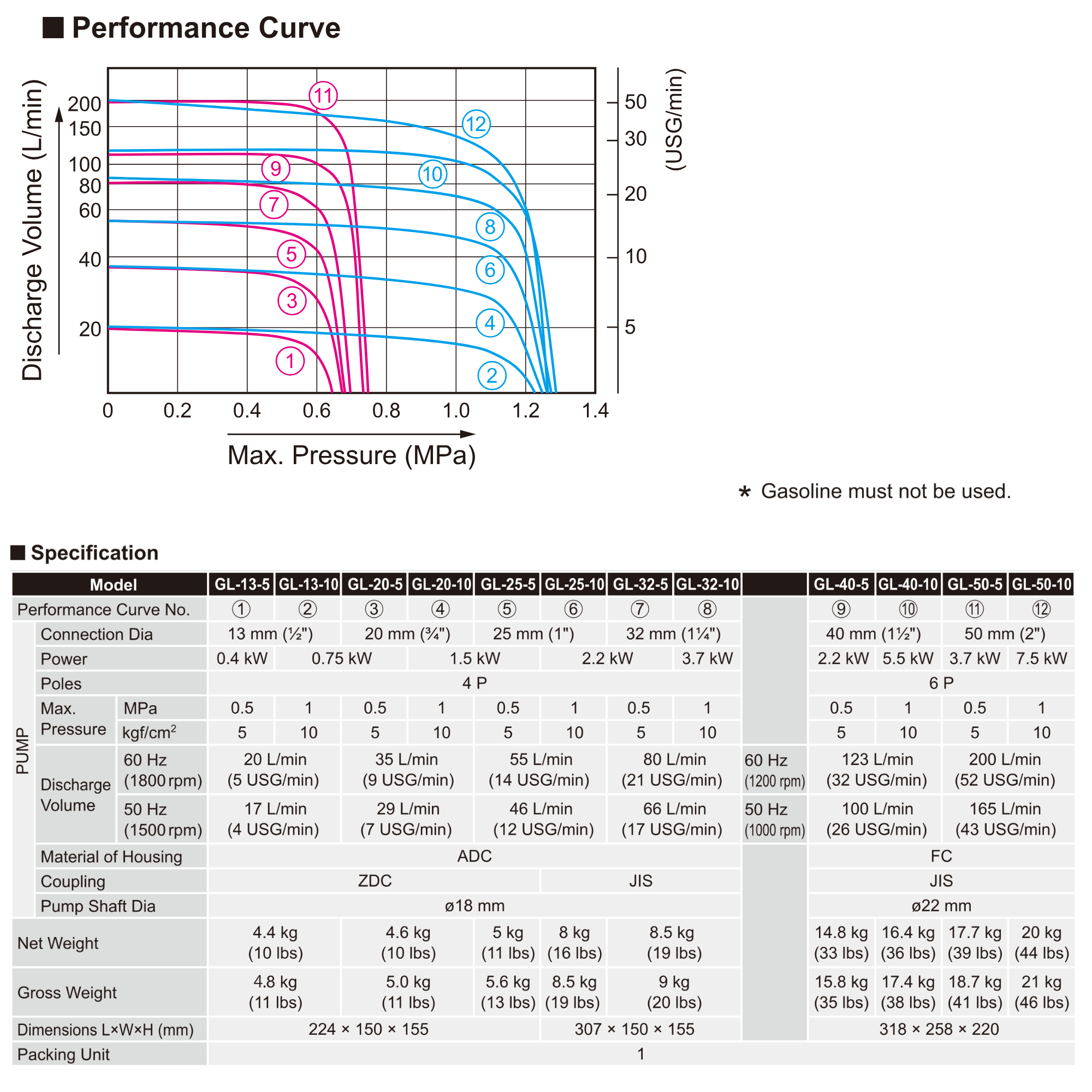

Performance curve and outline drawing
