• Long operating time with large fuel tank.
• Suitable for mining, shipboard, fire-fighting and construction.

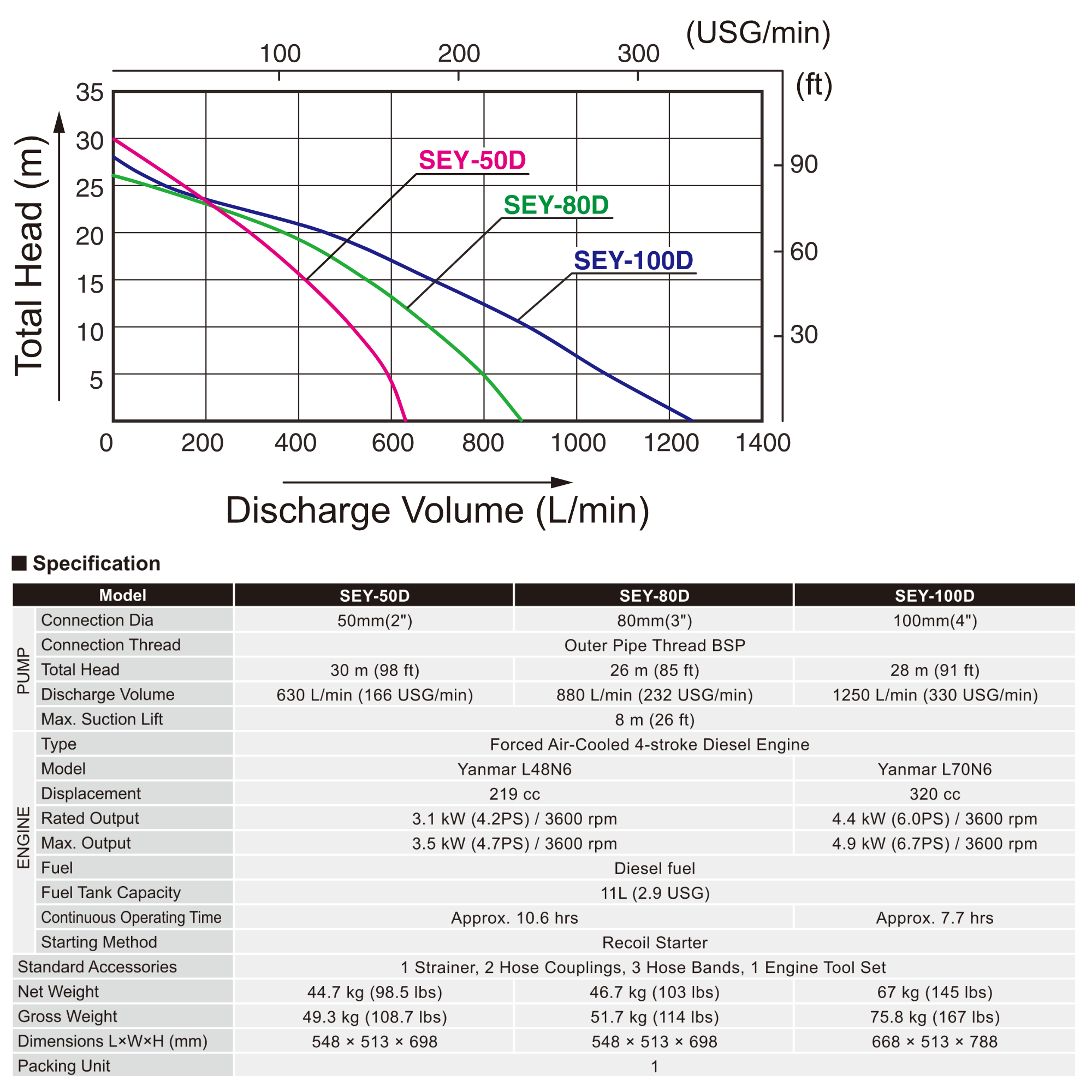

| Product category | Engine Pump - Clear Water Pump 2-4 Inch Pump - Yanmar SEY Series |
|---|---|
| Product name | SEY-100D |
| Model name | SEY-100D-BAA-0 |
| Pump_Connectiondia_Suction | 100 mm (4'''') |
| Pump_Connectiondia_Discharge | 100 mm (4'''') |
| Pump_Connection thread | BSP |
| Pump_Total head | 28 m (91 ft) |
| Pump_Discharge volume | 1250 L/min(330 USG/min) |
| Pump_Max. suction head | 8 m (26 ft) |
| Engine_Type | Forced air-cooled 4-stroke diesel engine |
| Engine_Model | YANMAR L70N6 |
| Engine_Displacement | 320 cm3 |
| Engine_Rated output | 4.4 kW (6.0 PS)/ 3600 min-1 |
| Engine_Max. output | 4.9 kW (6.7 PS)/ 3600 min-1 |
| Engine_Fuel | Diesel fuel |
| Engine_Fuel tank capacity | Tank size: 13 L (3.43 USG), Usage level: 11 L (2.90 USG) |
| Engine_Engine oil | API grade CD or above |
| Engine_Engine oil capacity | 1.1 L |
| Engine_Continuous operating time | Approx. 7.7 hrs |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | - |
| Applicable liquids_Suspended solid percentage | - |
| Applicable liquids_Max. solids size | - |
| Applicable liquids_Temperature | 5-40 °C (41-104°F) |
| Accessories | 1 Strainer, 2 Hose coupling sets, 3 Hose bands, 1 Engine tool sets |
| Net weight | 67.0 kg (144.7 lbs) |
| Gross weight | 75.8 kg (167.1 lbs) |
| Product dimensions L x W x H | 635 x 480 x 755 mm |
| Packing dimensions L x W x H | 668×513×788 mm |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
