• Long operating time with large fuel tank.
• Suitable for mining, shipboard, fire-fighting and construction.

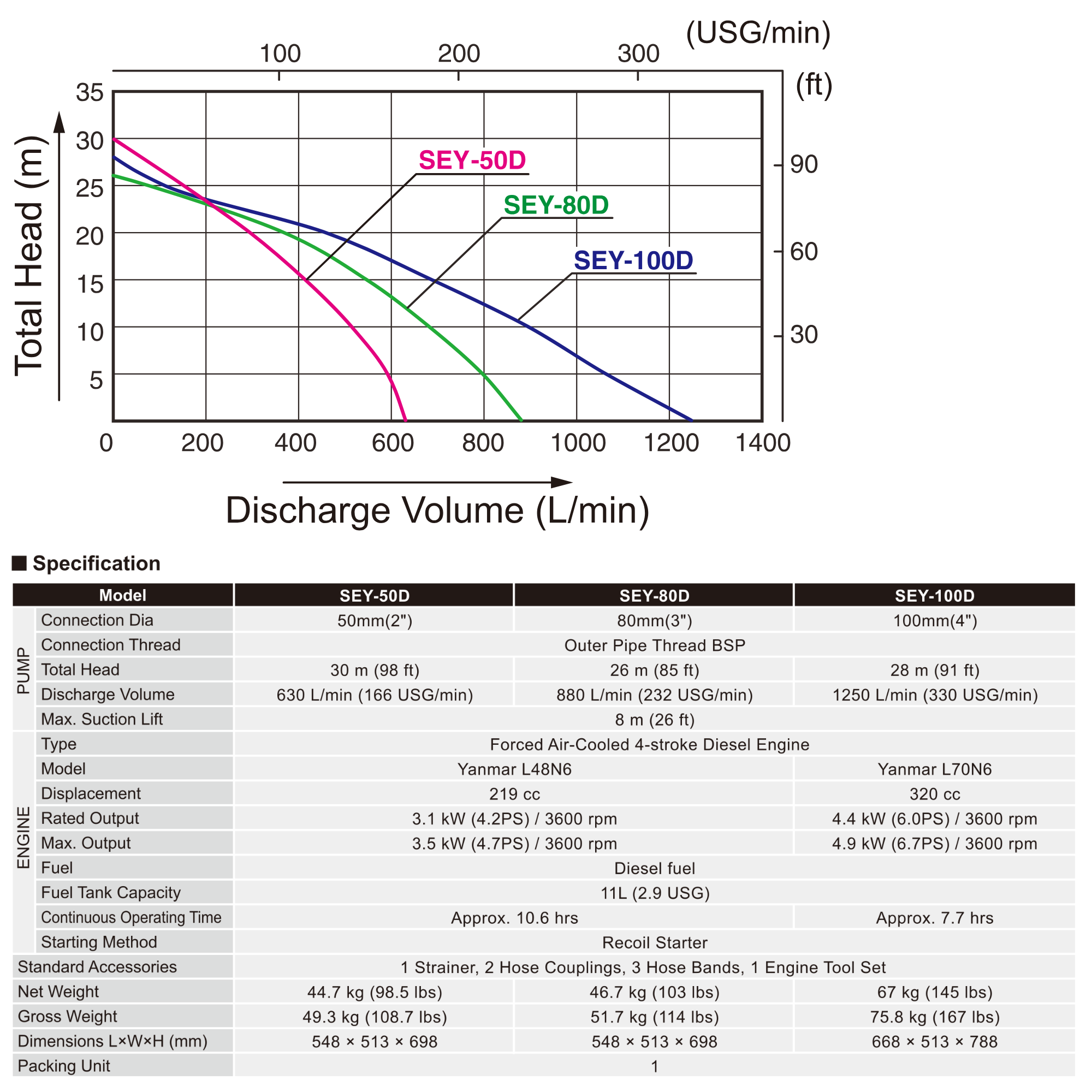

| Product category | Engine Pump - Clear Water Pump 2-4 Inch Pump - Yanmar SEY Series |
|---|---|
| Product name | SEY-80D |
| Model name | SEY-80D-BAA-0 |
| Pump_Connectiondia_Suction | 80 mm (3'''') |
| Pump_Connectiondia_Discharge | 80 mm (3'''') |
| Pump_Connection thread | BSP |
| Pump_Total head | 26 m (85 ft) |
| Pump_Discharge volume | 880 L/min(232 USG/min) |
| Pump_Max. suction head | 8 m (26 ft) |
| Engine_Type | Forced air-cooled 4-stroke diesel engine |
| Engine_Model | YANMAR L48N6 |
| Engine_Displacement | 219 cm3 |
| Engine_Rated output | 3.1 kW (4.2 PS)/ 3600 min-1 |
| Engine_Max. output | 3.5 kW (4.7 PS)/ 3600 min-1 |
| Engine_Fuel | Diesel fuel |
| Engine_Fuel tank capacity | Tank size: 13 L (3.43 USG), Usage level: 11 L (2.90 USG) |
| Engine_Engine oil | API grade CD or above |
| Engine_Engine oil capacity | 0.8 L |
| Engine_Continuous operating time | Approx. 10.6 hrs |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | - |
| Applicable liquids_Suspended solid percentage | - |
| Applicable liquids_Max. solids size | - |
| Applicable liquids_Temperature | 5-40 °C (41-104°F) |
| Accessories | 1 Strainer, 2 Hose coupling sets, 3 Hose bands, 1 Engine tool sets |
| Net weight | 46.7 kg (103.0 lbs) |
| Gross weight | 51.7 kg (114.0 lbs) |
| Product dimensions L x W x H | 515 x 480 x 665 mm |
| Packing dimensions L x W x H | 548×513×698 mm |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
