• Long operating time with large fuel tank.
• Suitable for mining, shipboard, fire-fighting and construction.

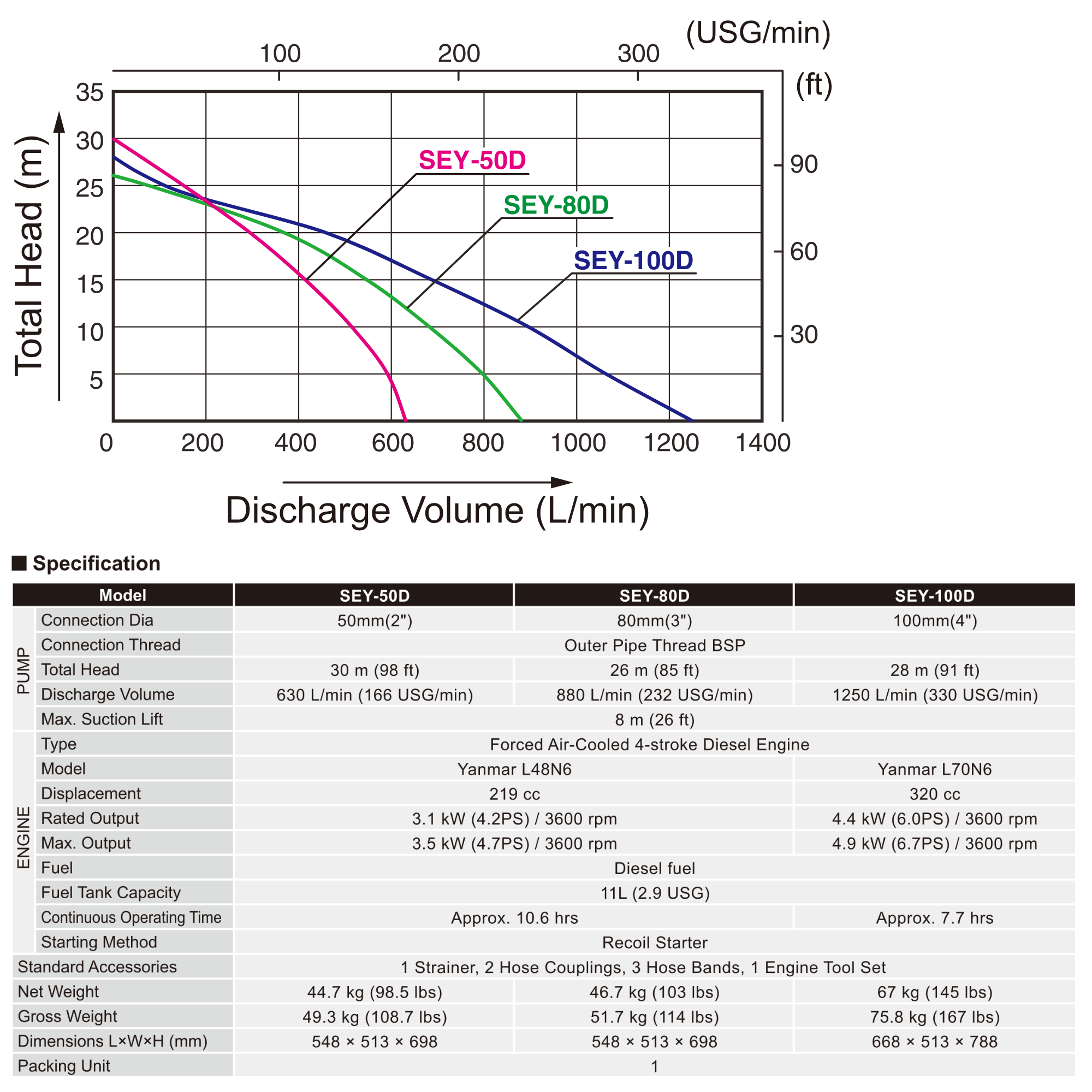

| Product category | Engine Pump - Clear Water Pump 2-4 Inch Pump - Yanmar SEY Series | ||
|---|---|---|---|
| Product name | SEY-50D | ||
| Model name | SEY-50D-BAA-0 | ||
| Pump | Connectiondia | Suction | 50 mm (2'''') |
| Discharge | 50 mm (2'''') | ||
| Connection thread | BSP | ||
| Total head | 30 m (98 ft) | ||
| Discharge volume | 630 L/min(166 USG/min) | ||
| Max. suction head | 8 m (26 ft) | ||
| Engine | Type | Forced air-cooled 4-stroke diesel engine | |
| Model | YANMAR L48N6 | ||
| Displacement | 219 cm3 | ||
| Rated output | 3.1 kW (4.2 PS)/ 3600 min-1 | ||
| Max. output | 3.5 kW (4.7 PS)/ 3600 min-1 | ||
| Fuel | Diesel fuel | ||
| Fuel tank capacity | Tank size: 13 L (3.43 USG), Usage level: 11 L (2.90 USG) | ||
| Engine oil | API grade CD or above | ||
| Engine oil capacity | 0.8 L | ||
| Continuous operating time | Approx. 10.6 hrs | ||
| Starting method | Recoil starter | ||
| Applicable liquids | Consistency | - | |
| Suspended solid percentage | - | ||
| Max. solids size | - | ||
| Temperature | 5-40 °C (41-104°F) | ||
| Accessories | 1 Strainer, 2 Hose coupling sets, 3 Hose bands, 1 Engine tool sets | ||
| Net weight | 44.7 kg (98.5 lbs) | ||
| Gross weight | 49.3 kg (108.7 lbs) | ||
| Product dimensions L x W x H | 515 x 480 x 665 mm | ||
| Packing dimensions L x W x H | 548×513×698 mm | ||
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
