KOSHIN Engine Competitive Price & Guaranteed Quality
(1) Low fuel consumption. The Koshin engine achieves the lowest fuel consumption.
(2) Low Vibration
Comfortable in use after reducing engine vibration.
(3) Guaranteed performance
Koshin guarantees 8 m suction lift and specifications.

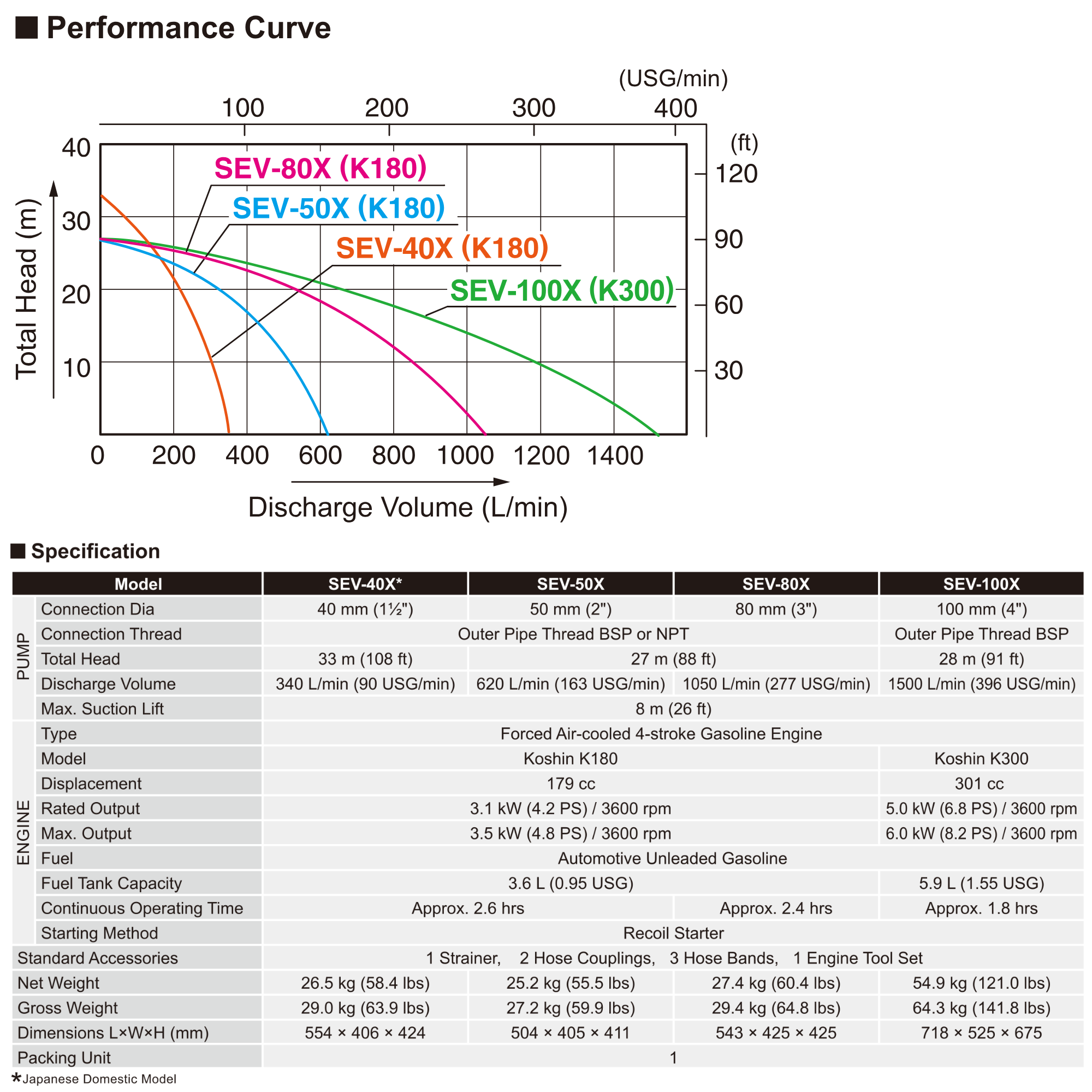

| Product category | |
|---|---|
| Product name | SEV-80X |
| Model name | SEV-80X-BAA-0 |
| Pump_Connectiondia_Suction | 80 mm (3 '''''''''''''''') |
| Pump_Connectiondia_Discharge | |
| Pump_Connection thread | BSP Thread |
| Pump_Total head | 27 m (90 ft) |
| Pump_Discharge volume | 1050 L/min (277 USG/min) |
| Pump_Max. suction head | 8 m (26 ft) |
| Engine_Type | Forced air-cooled 4-stroke gasoline engine |
| Engine_Model | K180 |
| Engine_Displacement | 179 cm3 |
| Engine_Rated output | 3.1kW(4.2PS) /3600min-1 |
| Engine_Max. output | |
| Engine_Fuel | Automotive Unleaded Gasoline |
| Engine_Fuel tank capacity | 3.6 L |
| Engine_Engine oil | |
| Engine_Engine oil capacity | |
| Engine_Continuous operating time | Approx. 2.4 hrs |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | |
| Applicable liquids_Suspended solid percentage | |
| Applicable liquids_Max. solids size | |
| Applicable liquids_Temperature | |
| Accessories | 1 Strainer, 3 Hose Bands, 1 Engine Tool Set |
| Net weight | 27.7 kg (61.0 lb) |
| Gross weight | 29.7 kg (65.4 lb) |
| Product dimensions L x W x H | 412 x 528 x 453 mm |
| Packing dimensions L x W x H | 553 × 435 × 473 mm |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
